FPGA現場可編程門陣列LCMXO3LF-6900C-6BG400C

發布于：2023-11-15 15:57:42

品牌名稱：Lattice

重要參數：

型號：MachXO3系列

I/O: 335pins

電源電壓：1.2V

封裝：BGA-400pin


  • 產品詳情

簡化的控制 PLD 設計和調試 – 具有多個 I/O bank、廣泛的信號標準、每引腳可編程性和業內最高的 I/O 邏輯比 - 無需犧牲特性和功能。在MachXO3器件系列中集成更多功能，具有多達9400個LUT和384個I/O。

安全可靠 – 使用密碼保護保護您的設計免受惡意攻擊，并通過最先進的軟錯誤檢測和軟糾錯功能減少軟錯誤。

擴展溫度靈活性 – 使用符合 AEC-Q100 標準的汽車級 XO3LF 器件實現您的下一個汽車或堅固環境設計。

特征:

· 多達 9400 個 LUT，具有多達 384 個 I/O 引腳

· 即時啟動 1 ms 啟動，帶后臺升級、無中斷 I/O 重新配置和雙啟動錯誤恢復

· 提供 3.3/2.5 V 內核或低功耗 1.2 V 內核 – 包括 9400 LUT 器件的其他選項

· MachXO3LF包括可編程閃存和用戶閃存(UFM)

· 采用超小(2.50 x 2.50 mm，0.4 mm間距)WLCSP封裝和間距為0.50 mm和0.80 mm的BGA封裝


MachXO3系列選型指南：

參數MachXO3L-640/
MachXO3LF-640		MachXO3L-1300/
MachXO3LF-1300		MachXO3L-2100/
MachXO3LF-2100		MachXO3L-4300/
MachXO3LF-4300		MachXO3L-6900/
MachXO3LF-6900		MachXO3L-9400/
MachXO3LF-9400
密度 LUT64013002100430069009400

分布式 RAM

（kbits）

51016345473

EBR SRAM

（千比特）

64647492240432

UFM（僅限 kbits、

MachXO3LF）

64648096256448
VCC = 2.5 V/3.3 V-是的
是的
是的
是的
是的
VCC = 1.2 V是的
是的
是的
是的
是的
是的
溫度等級1C / I / A2C / I / A2C / I / A2C / I / A2C / IC / I
鎖 相 環111222
我2C222222
SPI接口111111
定時器/計數器111111
振蕩器111111
MIPI D-PHY 支持是的是的是的是的是的是的
多次可編程 NVCMMachXO3LMachXO3LMachXO3LMachXO3LMachXO3LMachXO3L
可編程閃存MachXO3LFMachXO3LFMachXO3LFMachXO3LFMachXO3LFMachXO3LF

  1. C = 商業，I = 工業，A = 汽車
    2.汽車級器件僅采用MachXO3LF封裝



LCMXO3LF-640E-5TG100C, LCMXO3LF-640E-6TG100C, LCMXO3LF-640E-5TG100I, LCMXO3LF-640E-6TG100I, LCMXO3LF-640E-5MG132C, LCMXO3LF-640E-6MG132C, LCMXO3LF-640E-5MG132I, LCMXO3LF-640E-6MG132I, LCMXO3LF-1300E-5TG100C, LCMXO3LF-1300E-6TG100C, LCMXO3LF-1300E-5TG100I, LCMXO3LF-1300E-6TG100I, LCMXO3LF-1300E-5MG132C, LCMXO3LF-1300E-6MG132C, LCMXO3LF-1300E-5MG132I, LCMXO3LF-1300E-6MG132I, LCMXO3LF-1300C-5TG100C, LCMXO3LF-1300C-6TG100C, LCMXO3LF-1300C-5TG100I, LCMXO3LF-1300C-6TG100I, LCMXO3LF-1300C-5MG132C, LCMXO3LF-1300C-6MG132C, LCMXO3LF-1300C-5MG132I, LCMXO3LF-1300C-6MG132I, LCMXO3LF-2100E-5TG100C, LCMXO3LF-2100E-6TG100C, LCMXO3LF-2100E-5TG100I, LCMXO3LF-2100E-6TG100I, LCMXO3LF-2100E-5MG132C, LCMXO3LF-2100E-6MG132C, LCMXO3LF-2100E-5MG132I, LCMXO3LF-2100E-6MG132I, LCMXO3LF-2100C-5TG100C, LCMXO3LF-2100C-6TG100C, LCMXO3LF-2100C-5TG100I, LCMXO3LF-2100C-6TG100I, LCMXO3LF-2100C-5MG132C, LCMXO3LF-2100C-6MG132C, LCMXO3LF-2100C-5MG132I, LCMXO3LF-2100C-6MG132I, LCMXO3LF-4300E-5MG132C, LCMXO3LF-4300E-6MG132C, LCMXO3LF-4300E-5MG132I, LCMXO3LF-4300E-6MG132I, LCMXO3LF-4300C-5MG132C, LCMXO3LF-4300C-6MG132C, LCMXO3LF-4300C-5MG132I, LCMXO3LF-4300C-6MG132I, LAMXO3LF-640E-5TG100E, LAMXO3LF-640E-5MG132E, LAMXO3LF-1300E-5TG100E, LAMXO3LF-1300C-5TG100E, LAMXO3LF-1300E-5MG132E, LAMXO3LF-1300C-5MG132E, LAMXO3LF-2100E-5TG100E, LAMXO3LF-2100C-5TG100E, LAMXO3LF-2100E-5MG132E, LAMXO3LF-2100C-5MG132E, LAMXO3LF-4300E-5MG132E, LAMXO3LF-4300C-5MG132E

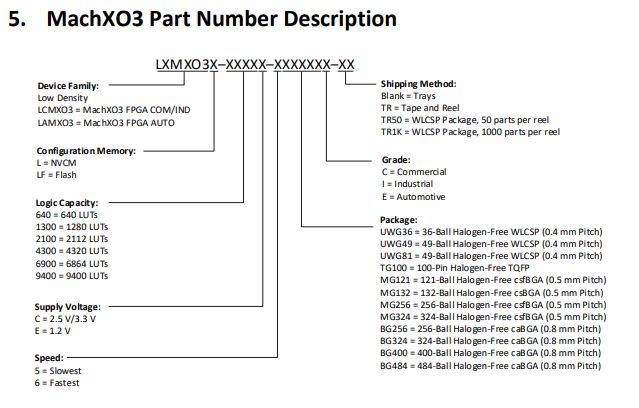

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
LCMXO3L-640E-5MG121C6401.2 V5Halogen-Free csfBGA121COM
LCMXO3L-640E-6MG121C6401.2 V6Halogen-Free csfBGA121COM
LCMXO3L-640E-5MG1216401.2 V5Halogen-Free csfBGA121IND
LCMXO3L-640E-6MG1216401.2V6Halogen-Free csfBGA121IND

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
LCMXO3L-1300E-5UWG36CTR13001.2 V5Halogen-Free WLCSP36COM
LCMXO3L-1300E-5UWG36CTR5013001.2V5Halogen-Free WLCSP36COM
LCMXO3L-1300E-5UWG36CTR1K13001.2V5Halogen-Free WLCSP36COM
LCMXO3L-1300E-5UWG36ITR13001.2V5Halogen-Free WLCSP36IND
LCMXO3L-1300E-5UWG36ITR5013001.2V5Halogen-Free WLCSP36IND
LCMXO3L-1300E-5UWG36ITR1K13001.2V5Halogen-Free WLCSP36IND
LCMXO3L-1300E-5MG121C13001.2V5Halogen-Free csfBGA121COM
LCMXO3L-1300E-6MG121C13001.2V6Halogen-Free csfBGA121COM
LCMXO3L-1300E-5MG121113001.2V5Halogen-Free csfBGA121IND
LCMXO3L-1300E-6MG121113001.2V6Halogen-Free csfBGA121IND
LCMXO3L-1300E-5MG256C13001.2V5Halogen-Free csfBGA256COM
LCMXO3L-1300E-6MG256C13001.2V6Halogen-Free csfBGA256COM
LCMXO3L-1300E-5MG256I13001.2V5Halogen-Free csfBGA256IND
LCMXO3L-1300E-6MG256I13001.2V6Halogen-Free csfBGA256IND
LCMXO3L-1300C-5BG256C13002.5V/3.3V5Halogen-Free caBGA256COM
LCMXO3L-1300C-6BG256C13002.5 V/3.3 V6Halogen-Free caBGA256COM
LCMXO3L-1300C-5BG25613002.5 V/3.3 V5Halogen-Free caBGA256IND
LCMXO3L-1300C-6BG25613002.5 V/3.3 V6Halogen-Free caBGA256IND

Part NumberLUTSSupply VoltageSpeedPackageLeadsTemp
LCMXO3L-2100E-5UWG49CTR21001.2V5Halogen-Free WLCSP49COM
LCMXO3L-2100E-5UWG49CTR5021001.2 V5Halogen-Free WLCSP49COM
LCMXO3L-2100E-5UWG49CTR1K21001.2V5Halogen-Free WLCSP49COM
LCMXO3L-2100E-5UWG49ITR21001.2 V5Halogen-Free WLCSP49IND
CMXO3L-2100E-5UWG49ITR5021001.2V5Halogen-Free WLCSP49ND
CMXO3L-2100E-5UWG49ITR1K21001.2V5Halogen-Free WLCSP49IND
LCMXO3L-2100E-5MG121C21001.2 V5Halogen-Free csfBGA121COM
CMXO3L-2100E-6MG121C21001.2 V6Halogen-Free csfBGA121COM

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp.
LCMXO3L-2100E-5MG121121001.2V5Halogen-Free csfBGA121ND
LCMXO3L-2100E-6MG121121001.2V6Halogen-Free csfBGA121ND
LCMXO3L-2100E-5MG256C21001.2V5Halogen-Free csfBGA256COM
LCMXO3L-2100E-6MG256C21001.2V6Halogen-Free csfBGA256COM
LCMXO3L-2100E-5MG256I21001.2 V5Halogen-Free csfBGA256ND
LCMXO3L-2100E-6MG256I21001.2V6Halogen-Free csfBGA256ND
LCMXO3L-2100E-5MG324C21001.2V5Halogen-Free csfBGA324COM
LCMXO3L-2100E-6MG324C21001.2V6Halogen-Free csfBGA324COM
LCMXO3L-2100E-5MG324I21001.2V5Halogen-Free csfBGA324ND
LCMXO3L-2100E-6MG324I21001.2 V6Halogen-Free csfBGA324ND
LCMXO3L-2100C-5BG256C21002.5 V/3.3 V5Halogen-Free caBGA256COM
LCMXO3L-2100C-6BG256C21002.5V/3.3 V6Halogen-Free caBGA256COM
LCMXO3L-2100C-5BG256I21002.5V/3.3 V5Halogen-Free caBGA256ND
LCMXO3L-2100C-6BG256I21002.5V/3.3V6Halogen-Free caBGA256ND
LCMXO3L-2100C-5BG324C21002.5V/3.3V5Halogen-Free caBGA324COM
LCMXO3L-2100C-6BG324C21002.5 V/3.3 V6Halogen-Free caBGA324COM
LCMXO3L-2100C-5BG32421002.5V/3.3V5Halogen-Free caBGA324ND
LCMXO3L-2100C-6BG324121002.5V/3.3 V6Halogen-Free caBGA324ND

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp.
LCMXO3L-4300E-SUWG81CTR43001.2V5Halogen-Free WLCSP81COM
LCMXO3L-4300E-SUWG81CTR5043001.2 V5Halogen-Free WLCSP81COM
LCMXO3L-4300E-SUWG81CTR1K43001.2V5Halogen-Free WLCSP81COM
LCMXO3L-4300E-5UWG81ITR43001.2V5Halogen-Free WLCSP81ND
LCMXO3L-4300E-5UWG81ITR5043001.2V5Halogen-Free WLCSP81ND
LCMXO3L-4300E-SUWG81ITR1K43001.2V5Halogen-Free WLCSP81ND
LCMXO3L-4300E-5MG121C43001.2 V5Halogen-Free csfBGA121COM
LCMXO3L-4300E-6MG121C43001.2V6Halogen-Free csfBGA121COM
LCMXO3L-4300E-5MG121I43001.2V5Halogen-Free csfBGA121IND
LCMXO3L-4300E-6MG121143001.2V6Halogen-Free csfBGA121ND
LCMXO3L-4300E-5MG256C43001.2V5Halogen-Free csfBGA256COM
LCMXO3L-4300E-6MG256C43001.2V6Halogen-Free csfBGA256COM
LCMXO3L-4300E-5MG256I43001.2 V5Halogen-Free csfBGA256ND
LCMXO3L-4300E-6MG256I43001.2V6Halogen-Free csfBGA256IND
LCMXO3L-4300E-5MG324C43001.2V5Halogen-Free csfBGA324COM
LCMXO3L-4300E-6MG324C43001.2V6Halogen-Free csfBGA324COM
LCMXO3L-4300E-5MG324I43001.2V5Halogen-Free csfBGA324ND
LCMXO3L-4300E-6MG324I43001.2V6Halogen-Free csfBGA324ND
LCMXO3L-4300C-5BG256C43002.5V/3.3V5Halogen-Free caBGA256COM
LCMXO3L-4300C-6BG256C43002.5V/3.3V6Halogen-Free caBGA256COM
LCMXO3L-4300C-5BG256I43002.5V/3.3 V5Halogen-Free caBGA256ND
LCMXO3L-4300C-6BG256I43002.5V/3.3 V6Halogen-Free caBGA256ND
LCMXO3L-4300C-5BG324C43002.5V/3.3 V5Halogen-Free caBGA324COM
LCMXO3L-4300C-6BG324C43002.5V/3.3V6Halogen-Free caBGA324COM
LCMXO3L-4300C-5BG32443002.5V/3.3V5Halogen-Free caBGA324ND
LCMXO3L-4300C-6BG32443002.5V/3.3V6Halogen-Free caBGA324ND
LCMXO3L-4300C-5BG400C43002.5V/3.3 V5Halogen-Free caBGA400COM
LCMXO3L-4300C-6BG400C43002.5 V/3.3V6Halogen-Free caBGA400COM

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp.
LCMXO3L-4300C-5BG400I43002.5V/3.3V5Halogen-Free caBGA400IND
LCMXO3L-4300C-6BG40043002.5V/3.3 V6Halogen-Free caBGA400IND

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
CMXO3L-6900E-5MG256C69001.2 V5Halogen-Free csfBGA256COM
CMXO3L-6900E-6MG256C69001.2V6Halogen-Free csfBGA256COM
LCMXO3L-6900E-5MG256169001.2V5Halogen-Free csfBGA256IND
LCMXO3L-6900E-6MG256169001.2V6Halogen-Free csfBGA256IND
CMXO3L-6900E-5MG324C69001.2V5Halogen-Free csfBGA324COM
CMXO3L-6900E-6MG324C69001.2 V6Halogen-Free csfBGA324COM
LCMXO3L-6900E-5MG324169001.2 V5Halogen-Free csfBGA324IND
LCMXO3L-6900E-6MG324I69001.2V6Halogen-Free csfBGA324IND
CMXO3L-6900C-5BG256C69002.5V/3.3 V5Halogen-Free caBGA256COM
CMXO3L-6900C-6BG256C69002.5V/3.3 V6Halogen-Free caBGA256COM
LCMXO3L-6900C-5BG256I69002.5V/3.3 V5Halogen-Free caBGA256IND
LCMXO3L-6900C-6BG256I6902.5V/3.3V6Halogen-Free caBGA256IND
CMXO3L-6900C-5BG324C69002.5V/3.3V5Halogen-Free caBGA324COM
CMXO3L-6900C-6BG324C69002.5V/3.3 V6Halogen-Free caBGA324COM
LCMXO3L-6900C-5BG324I6902.5V/3.3 V5Halogen-Free caBGA324IND
LCMXO3L-6900C-6BG324I69002.5V/3.3 V6Halogen-Free caBGA324IND
CMXO3L-6900C-5BG400C69002.5V/3.3V5Halogen-Free caBGA400COM
CMXO3L-6900C-6BG400C69002.5V/3.3 V6Halogen-Free caBGA400COM
LCMXO3L-6900C-5BG400I69002.5V/3.3V5Halogen-Free caBGA400IND
LCMXO3L-6900C-6BG40069002.5V/3.3 V6Halogen-Free caBGA400IND

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
CMXO3L-9400E-5MG256C94001.2V5Halogen-Free csfBGA256COM
CMXO3L-9400E-6MG256C94001.2 V6Halogen-Free csfBGA256COM
LCMXO3L-9400E-5MG256194001.2 V5Halogen-Free csfBGA256IND
LCMXO3L-9400E-6MG256194001.2V6Halogen-Free csfBGA256IND
LCMXO3L-9400E-5BG256C94001.2V5Halogen-Free caBGA256COM
CMXO3L-9400E-6BG256C94001.2V6Halogen-Free caBGA256COM
LCMXO3L-9400E-5BG256I94001.2V5Halogen-Free caBGA256IND
LCMXO3L-9400E-68G256I94001.2V6Halogen-Free caBGA256IND
CMXO3L-9400E-5BG400C94001.2V5Halogen-Free caBGA400COM
CMXO3L-9400E-6BG400C94001.2 V6Halogen-Free caBGA400COM
CMXO3L-9400E-5BG40094001.2V5Halogen-Free caBGA400IND
CMXO3L-9400E-6BG40094001.2V6Halogen-Free caBGA400IND
CMXO3L-9400E-5BG484C94001.2 V5Halogen-Free caBGA484COM
CMXO3L-9400E-6BG484C94001.2 V6Halogen-Free caBGA484COM
LCMXO3L-9400E-5BG484I94001.2V5Halogen-Free caBGA484IND
LCMXO3L-9400E-6BG484I94001.2 V6Halogen-Free caBGA484IND
LCMXO3L-9400C-5BG256C94002.5V/3.3V5Halo en-Free caBGA256COM
CMXO3L-9400C-6BG256C9402.5V/3.3V6Halogen-Free caBGA256COM
LCMXO3L-9400C-5BG256I94002.5V/3.3 V5Halogen-Free caBGA256IND
LCMXO3L-9400C-6BG25694002.5V/3.3V6Halogen-Free caBGA256IND
CMXO3L-9400C-5BG400C94002.5V/3.3V5Halogen-Free caBGA400COM
CMXO3L-9400C-6BG400C94002.5V/3.3 V6Halogen-Free caBGA400COM

Part NumberLUTsSupply VoltageSpeedPackareLeadsTemp.
LCMXO3L-9400C-5BG40094002.5V/3.3V5Halogen-Free caBGA400IND
LCMXO3L-9400C-6BG40094002.5V/3.3V6Halogen-Free caBGA400ND
LCMXO3L-9400C-5BG484C04002.5V/3.3V5Halogen-Free caBGA484COM
LCMXO3L-9400C-6BG484C94002.5V/3.3V6Halogen-Free caBGA484COM
CMXO3L-9400C-5BG484I94002.5V/3.3V5Halogen-Free caBGA484IND
LCMXO3L-9400C-6BG484I94002.5V/3.3 V6Halogen-Free caBGA484IND

Part Number LUTsSupply VoltageSpeedPackageLeadsTemp
LCMXO3LF-640E-5TG100C 6401.2V5Halogen-Free TQFP100COM
LCMXO3LF-640E-6TG100C 6401.2V6Halogen-Free TQFP100COM
LCMXO3LF-640E-5TG100I 6401.2V5Halogen-Free TQFP100IND
LCMXO3LF-640E-6TG100I 6401.2V6Halogen-Free TQFP100IND
LCMXO3LF-640E-5MG121C 6401.2V5Halogen-Free csfBGA121COM
LCMXO3LF-640E-6MG121C 6401.2V6Halogen-Free csfBGA121COM
CMXO3LF-640E-5MG1211 6401.2V5Halogen-Free csfBGA121IND
LCMXO3LF-640E-6MG1211 6401.2V6Halogen-Free csfBGA121IND
LCMXO3LF-640E-5MG132C 6401.2V5Halogen-Free csBGA132COM
LCMXO3LF-640E-6MG132C 6401.2V6Halogen-Free csBGA132COM
LCMXO3LF-640E-5MG1321 6401.2V5Halogen-Free csBGA132ND
LCMXO3LF-640E-6MG1321 6401.2V6Halogen-Free csBGA132IND

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp.
LCMXO3LF-1300E-5UWG36CTR13001.2V5Halogen-Free WLCSP36COM
LCMXO3LF-1300E-5UWG36CTR5013001.2V5Halogen-Free WLCSP36COM
LCMXO3LF-1300E-5UWG36CTR1K13001.2V5Halogen-Free WLCSP36COM
LCMXO3LF-1300E-5UWG36ITR13001.2V5Halogen-Free WLCSP36IND
LCMXO3LF-1300E-5UWG36ITR5013001.2V5Halogen-Free WLCSP36IND
LCMXO3LF-1300E-5UWG36ITR1K13001.2V5Halogen-Free WLCSP36IND
LCMXO3LF-1300E-5TG100C13001.2V5Halogen-Free TQFP100COM
LCMXO3LF-1300E-6TG100C13001.2V6Halogen-Free TQFP100COM
LCMXO3LF-1300E-5TG100I13001.2 V5Halogen-Free TQFP100IND
LCMXO3LF-1300E-6TG100I13001.2V6Halogen-Free TQFP100IND
LCMXO3LF-1300E-5MG121C13001.2V5Halogen-Free csfBGA121COM
LCMXO3LF-1300E-6MG121C13001.2 V6Halogen-Free csfBGA121COM
LCMXO3LF-1300E-5MG121113001.2V5Halogen-Free csfBGA121IND
LCMXO3LF-1300E-6MG121113001.2V6Halogen-Free csfBGA121IND
LCMXO3LF-1300E-5MG132C13001.2V5Halogen-Free csBGA132COM
LCMXO3LF-1300E-6MG132C13001.2 V6Halogen-Free csBGA132COM
LCMXO3LF-1300E-5MG132I13001.2V5Halogen-Free csBGA132IND
LCMXO3LF-1300E-6MG132I13001.2 V6Halogen-Free csBGA132IND
LCMXO3LF-1300E-5MG256C13001.2V5Halogen-Free csfBGA256COM
LCMXO3LF-1300E-6MG256C13001.2V6Halogen-Free csfBGA256COM
LCMXO3LF-1300E-5MG256I13001.2V5Halogen-Free csfBGA256IND
LCMXO3LF-1300E-6MG256I13001.2V6Halogen-Free csfBGA256IND

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
LCMXO3LF-1300C-5TG100C13002.5V/3.3V5Halogen-Free TQFP100COM
LCMXO3LF-1300C-6TG100C13002.5V/3.3 V6Halogen-Free TQFP100COM
LCMXO3LF-1300C-5TG100I13002.5V/3.3 V5Halogen-Free TQFP100IND
CMXO3LF-1300C-6TG100I13002.5V/3.3 V6Halogen-Free TQFP100IND
CMXO3LF-1300C-5MG132C13002.5V/3.3 V5Halogen-Free csBGA132COM
CMXO3LF-1300C-6MG132C13002.5V/3.3 V6Halogen-Free csBGA132COM
LCMXO3LF-1300C-5MG132I13002.5V/3.3 V5Halogen-Free csBGA132IND
LCMXO3LF-1300C-6MG13213002.5V/3.3 V6Halogen-Free csBGA132IND
CMXO3LF-1300C-5BG256C13002.5V/3.3 V5Halogen-Free caBGA256CO
CMXO3LF-1300C-6BG256C13002.5V/3.3 V6Halogen-Free caBGA256COM
LCMXO3LF-1300C-5BG25613002.5V/3.3V5Halogen-Free caBGA256IND
LCMXO3LF-1300C-6BG256I13002.5V/3.3V6Halogen-Free caBGA256IND

Part NumberLUTsSupply VoltageSpeedPackagLeadsTemp
CMXO3LF-2100E-5UWG49CTR21001.2 V5Halogen-Free WLCSP49COM
CMXO3LF-2100E-5UWG49CTR5021001.2V5Halogen-Free WLCSP49COM
CMXO3LF-2100E-5UWG49CTR1K21001.2 V5Halogen-Free WLCSP49COM
CMXO3LF-2100E-5UWG49ITR21001.2V5Halogen-Free WLCSP49IND
CMXO3LF-2100E-5UWG49ITR5021001.2 V5Halogen-Free WLCSP49IND
CMXO3LF-2100E-5UWG49ITR1K21001.2V5Halogen-Free WLCSP49IND
LCMXO3LF-2100E-5TG100C21001.2 V5Halogen-Free TQFP100COM
LCMXO3LF-2100E-6TG100C21001.2V6Halogen-Free TQFP100COM
LCMXO3LF-2100E-5TG100I21001.2V5Halogen-Free TQFP100IND
LCMXO3LF-2100E-6TG100I21001.2V6Halogen-Free TQFP100IND
LCMXO3LF-2100E-5MG121C21001.2V5Halogen-Free csfBGA121COM
CMXO3LF-2100E-6MG121C21001.2 V6Halogen-Free csfBGA121COM
LCMXO3LF-2100E-5MG12112101.2 V5Halogen-Free csfBGA121IND
LCMXO3LF-2100E-6MG121I21001.2V6Halogen-Free csfBGA121IND
LCMXO3LF-2100E-5MG132C21001.2 V5Halogen-Free csBGA132COM
CMXO3LF-2100E-6MG132C21001.2V6Halogen-Free csBGA132COM
LCMXO3LF-2100E-5MG132121001.2V5Halogen-Free csBGA132IND
LCMXO3LF-2100E-6MG132121001.2 V6Halogen-Free csBGA132IND
CMXO3LF-2100E-5MG256C21001.2 V5Halogen-Free csfBGA256COM
CMXO3LF-2100E-6MG256C21001.2V6Halogen-Free csfBGA256COM
LCMXO3LF-2100E-5MG256I21001.2V5Halogen-Free csfBGA256IND
LCMXO3LF-2100E-6MG25621001.2V6Halogen-Free csfBGA256IND
CMXO3LF-2100E-5MG324C21001.2 V5Halogen-Free csfBGA324COM
CMXO3LF-2100E-6MG324C21001.2 V6Halogen-Free csfBGA324COM
LCMXO3LF-2100E-5MG324I21001.2 V5Halogen-Free csfBGA324IND
LCMXO3LF-2100E-6MG324I21001.2V6Halogen-Free csfBGA324IND
LCMXO3LF-2100C-5TG100C21002.5V/3.3 V5Halogen-Free TOFP100COM
LCMXO3LF-2100C-6TG100C21002.5V/3.3V6Halogen-Free TQFP100COM
CMXO3LF-2100C-5TG100I21002.5V/3.3V5Halogen-Free TQFP100IND
LCMXO3LF-2100C-6TG100I21002.5V/3.3 V6Halogen-Free TQFP100IND
CMXO3LF-2100C-5MG132C21002.5V/3.3 V5Halogen-Free csBGA100COM
CMXO3LF-2100C-6MG132C21002.5V/3.3V6Halogen-Free csBGA100COM
LCMXO3LF-2100C-5MG132121002.5V/3.3 V5Halogen-Free csBGA100IND
LCMXO3LF-2100C-6MG132I21002.5V/3.3V6Halogen-Free csBGA100IND

Part NumberLUTsSupply Voltage5pgedPackageLeadsTemp.
LCMXO3LF-2100C-5BG256C21002.5V/3.3V5Halogen-Free caBGA256COM
LCMXO3LF-2100C-6BG256C21002.5V/3.3V6Halogen-Free caBGA256COM
LCMXO3LF-2100C-5BG256I21002.5V/3.3V5Halogen-Free caBGA256ND
LCMXO3LF-2100C-6BG256I21002.5V/3.3 V6Halogen-Free caBGA256ND
LCMXO3LF-2100C-5BG324C21002.5V/3.3V5Halogen-Free caBGA324COM
CMXO3LF-2100C-6BG324C21002.5V/3.3V6Halogen-Free caBGA324COM
LCMXO3LF-2100C-5BG324121002.5V/3.3V5Halogen-Free caBGA324ND
LCMXO3LF-2100C-6BG324121002.5V/3.3V6Halogen-Free caBGA324IND

Part NumberLUTsSupply VoltageSpeegPackageLeadsTemp.
CMXO3LF-4300E-5UWG81CTR43001.2V5Halogen-Free WLCSP81COM
LCMXO3LF-4300E-5UWG81CTR5043001.2 V5Halogen-Free WLCSP81COM
LCMXO3LF-4300E-5UWG81CTR1K43001.2 V5Halogen-Free WLCSP81COM
LCMXO3LF-4300E-5UWG81ITR43001.2 V5Halogen-Free WLCSP81IND
LCMXO3LF-4300E-5UWG81ITR5043001.2V5Halogen-Free WLCSP81ND
LCMXO3LF-4300E-5UWG81ITR1K43001.2 V5Halogen-Free WLCSP81ND
LCMXO3LF-4300E-5MG121C43001.2 V5Halogen-Free csfBGA121COM
LCMXO3LF-4300E-6MG121C43001.2 V6Halogen-Free csfBGA121COM
CMXO3LF-4300E-5MG121I43001.2 V5Halogen-Free csfBGA121ND
LCMXO3LF-4300E-6MG121143001.2V6Halogen-Free csfBGA121IND
LCMXO3LF-4300E-5MG132C43001.2 V5Halogen-Free csBGA132COM
LCMXO3LF-4300E-6MG132C43001.2 V6Halogen-Free csBGA132COM
LCMXO3LF-4300E-5MG132I43001.2 V5Halogen-Free csBGA132ND
LCMXO3LF-4300E-6MG132I43001.2 V6Halogen-Free csBGA132ND
CMXO3LF-4300E-5MG256C43001.2 V5Halogen-Free csfBGA256COM
LCMXO3LF-4300E-6MG256C43001.2V6Halogen-Free csfBGA256COM
LCMXO3LF-4300E-5MG256I43001.2 V5Halogen-Free csfBGA256ND
LCMXO3LF-4300E-6MG256I43001.2 V6Halogen-Free csfBGA256ND
LCMXO3LF-4300E-5MG324C43001.2 V5Halogen-Free csfBGA324COM
LCMXO3LF-4300E-6MG324C43001.2 V6Halogen-Free csfBGA324COM
LCMXO3LF-4300E-5MG324I43001.2 V5Halogen-Free csfBGA324ND
LCMXO3LF-4300E-6MG324I43001.2V6Halogen-Free csfBGA324IND
LCMXO3LF-4300C-5MG132C43002.5V/3.3V5Halogen-Free csBGA132COM
LCMXO3LF-4300C-6MG132C43002.5V/3.3V6Halogen-Free csBGA132COM
LCMXO3LF-4300C-5MG132143002.5V/3.3V5Halogen-Free csBGA132ND
LCMXO3LF-4300C-6MG132143002.5V/3.3 V6Halogen-Free csBGA132ND
LCMXO3LF-4300C-5BG256C43002.5V/3.3V5Halogen-Free caBGA256COM
LCMXO3LF-4300C-6BG256C43002.5V/3.3V6Halogen-Free caBGA256COM
LCMXO3LF-4300C-5BG256I43002.5V/3.3V5Halogen-Free caBGA256IND
LCMXO3LF-4300C-6BG256I43002.5V/3.3V6Halogen-Free caBGA256ND
LCMXO3LF-4300C-5BG324C43002.5V/3.3V5Halogen-Free caBGA324COM
LCMXO3LF-4300C-6BG324C43002.5V/3.3 V6Halogen-Free caBGA324COM
LCMXO3LF-4300C-5BG324143002.5V/3.3V5Halogen-Free caBGA324ND
CMXO3LF-4300C-68G324I43002.5V/3.3V6Halogen-Free caBGA324IND
LCMXO3LF-4300C-5BG400C43002.5V/3.3V5Halogen-Free caBGA400COM
LCMXO3LF-4300C-6BG400C43002.5V/3.3V6Halogen-Free caBGA400COM
LCMXO3LF-4300C-5BG400I43002.5V/3.3V5Halogen-Free caBGA400IND
LCMXO3LF-4300C-6BG400I43002.5V/3.3 V6Halogen-Free caBGA400ND

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
CMXO3LF-6900E-5MG256C6901.2 V5Halogen-Free csfBGA256COM
CMXO3LF-6900E-6MG256C69001.2 V6Halogen-Free csfBGA256COM
LCMXO3LF-6900E-5MG256I69001.2V5Halogen-Free csfBGA256IND
LCMXO3LF-6900E-6MG256I69001.2 V6Halogen-Free csfBGA256IND
CMXO3LF-6900E-5MG324C69001.2 V5Halogen-Free csfBGA324COM
CMXO3LF-6900E-6MG324C69001.2 V6Halogen-Free csfBGA324COM
LCMXO3LF-6900E-5MG324I69001.2 V5Halogen-Free csfBGA324IND
LCMXO3LF-6900E-6MG324I6901.2V6Halogen-Free csfBGA324IND
CMXO3LF-6900C-5BG256C6902.5V/3.3 V5Halogen-Free caBGA256COM
CMXO3LF-6900C-6BG256C69002.5V/3.3V6Halogen-Free caBGA256COM
LCMXO3LF-6900C-5BG256I6902.5V/3.3 V5Halogen-Free caBGA256IND
LCMXO3LF-6900C-6BG25669002.5V/3.3V6Halogen-Free caBGA256IND
CMXO3LF-6900C-5BG324C69002.5V/3.3 V5Halogen-Free caBGA324COM
CMXO3LF-6900C-6BG324C6902.5V/3.3 V6Halogen-Free caBGA324COM
LCMXO3LF-6900C-58G32469002.5V/3.3V5Halogen-Free caBGA324IND
CMXO3LF-6900C-6BG324I6902.5V/3.3 V6Halogen-Free caBGA324IND
LCMXO3LF-6900C-5BG400C6902.5V/3.3V5Halogen-Free caBGA400COM
LCMXO3LF-6900C-6BG400C6902.5V/3.3 V6Halogen-Free caBGA400COM
LCMXO3LF-6900C-5BG40069002.5V/3.3 V5Halogen-Free caBGA400IND
LCMXO3LF-6900C-6BG4006902.5V/3.3 V6Halogen-Free caBGA400IND

Part NumbeLUTsSupply VoltageSpeedPackageLeadsTemp
CMXO3LF-9400E-5MG256C94001.2 V5Halogen-Free csfBGA256COM
CMXO3LF-9400E-6MG256C94001.2 V6Halogen-Free csfBGA256COM
LCMXO3LF-9400E-5MG256I9401.2 V5Halogen-Free csfBGA256IND
LCMXO3LF-9400E-6MG256I9401.2 V6Halogen-Free csfBGA256IND
CMXO3LF-9400E-5BG256C94001.2V5Halogen-Free caBGA256COM
CMXO3LF-9400E-6BG256C94001.2V6Halogen-Free caBGA256COM
LCMXO3LF-9400E-5BG256I94001.2V5Halogen-Free caBGA256IND
LCMXO3LF-9400E-6BG256I94001.2 V6Halogen-Free caBGA256IND
CMXO3LF-9400E-5BG400C94001.2 V5Halogen-Free caBGA400COM
CMXO3LF-9400E-6BG400C94001.2V6Halogen-Free caBGA400COM
CMXO3LF-9400E-5BG40094001.2 V5Halogen-Free caBGA400ND
CMXO3LF-9400E-6BG40094001.2V6Halogen-Free caBGA400IND
CMXO3LF-9400E-5BG484C94001.2 V5Halogen-Free caBGA484COM
CMXO3LF-9400E-6BG484C94001.2V6Halogen-Free caBGA484COM
CMXO3LF-9400E-5BG484I94001.2V5Halogen-Free caBGA484IND
LCMXO3LF-9400E-6BG484I9401.2 V6Halogen-Free caBGA484IND
CMXO3LF-9400C-5BG256C94002.5V/3.3V5Halogen-Free caBGA256COM
CMXO3LF-9400C-6BG256C9402.5V/3.3 V6Halogen-Free caBGA256COM
CMXO3LF-9400C-5BG256I94002.5V/3.3 V5Halogen-Free caBGA256IND
LCMXO3LF-9400C-6BG256I94002.5V/3.3 V6Halogen-Free caBGA256IND
LCMXO3LF-9400C-5BG400C94002.5V/3.3 V5Halogen-Free caBGA400COM
CMXO3LF-9400C-6BG400C9402.5V/3.3V6Halogen-Free caBGA400COM
LCMXO3LF-9400C-5BG40094002.5V/3.3 V5Halogen-Free caBGA400IND
CMXO3LF-9400C-6BG40094002.5V/3.3 V6Halogen-Free caBGA400IND
CMXO3LF-9400C-5BG484C94002.5V/3.3V5Halogen-Free caBGA484COM
CMXO3LF-9400C-6BG484C9402.5V/3.3 V6Halogen-Free caBGA484COM

Part NumbeLUTsSupply VoltageSpeedPackageLeadsTemp
LCMXO3LF-9400C-5BG484I94002.5V/3.3V5Halogen-Free caBGA484IND
LCMXO3LF-9400C-68G484I94002.5 V/3.3 V6Halogen-Free caBGA484IND
6.3. MachXO3LF Ultra Low Power Automotive Grade Devices,Halogen Free
  (RoHS)Packaging
Part Number LUTsSupply Voltage5peedPackageLeadsTemp
LAMXO3LF-640E-5TG100E 6401.25Halogen-Free TQFP100AUTO
LAMXO3LF-640E-5MG132E 6401.25Halogen-Free csBGA132AUTO
LAMXO3LF-1300E-5TG100E 13001.25Halogen-Free TOFP100AUTO
LAMXO3LF-1300C-5TG100E 13003.35Halogen-Free TQFP100AUTO
LAMXO3LF-1300E-5MG132E 13001.25Halogen-Free csBGA132AUTO
LAMXO3LF-1300C-5MG132E 13003.35Halogen-Free csBGA132AUTO
LAMXO3LF-1300E-5BG256E 13001.25Halogen-Free caBGA256AUTO
LAMXO3LF-1300C-58G256E 13003.35Halogen-Free caBGA256AUTO
LAMXO3LF-2100E-5TG100E 21001.25Halogen-Free TQFP100AUTO
LAMXO3LF-2100C-5TG100E 21003.35Halogen-Free TOFP100AUTO
LAMXO3LF-2100E-5MG132E 21001.25Halogen-Free csBGA132AUTO
LAMXO3LF-2100C-5MG132E 21003.35Halogen-Free csBGA132AUTO
LAMXO3LF-2100E-5BG256E 21001.25Halogen-Free caBGA256AUTO
LAMXO3LF-2100C-5BG256E 21003.35Halogen-Free caBGA256AUTO
LAMXO3LF-2100E-58G324E 21001.25Halogen-Free caBGA324AUTO
LAMXO3LF-2100C-58G324E 21003.35Halogen-Free caBGA324AUTO
LAMXO3LF-4300E-5MG132E 43001.25Halogen-Free csBGA132AUTO
LAMXO3LF-4300C-5MG132E 43003.35Halogen-Free csBGA132AUTO
LAMXO3LF-4300E-5BG256E 43001.25Halogen-Free caBGA256AUTO
LAMXO3LF-4300C-58G256E 43003.35Halogen-Free caBGA256AUTO
LAMXO3LF-4300E-58G324E 43001.25Halogen-Free caBGA324AUTO
LAMXO3LF-4300C-58G324E 43003.35Halogen-Free caBGA324AUTO


示例解決方案


控制PLD

  • 非易失性PLD（640至9400 LUT和28至384 I/O）在服務器、通信盒和工業控制器中提供最廣泛的應用覆蓋。

  • 通過將硬件管理功能（如電源熱管理和控制PLD）集成到MachXO3和L-ASC10中，降低成本和BOM。

  • 在系統內添加功能并修復錯誤，而不會通過無中斷 I/O 中斷系統運行。

  • 通過使用 Reveal 進行片上調試，更快地完成電路板調試。


帶MachXO3的電機控制接口

  • 靈活地與工業、汽車和其他嵌入式系統中使用的各種電機連接

  • IGBT保護和SPI接口允許向MCU提供實時反饋

  • 靈活地支持不同的通信標準，功耗低，響應速度快

  • 占地面積小，適合空間受限的應用


使用MachXO3進行電池管理控制

  • MachXO3為移動和便攜式嵌入式系統的電池管理提供控制器

  • 智能電池平衡，用于每個電池單元的電荷均衡。

  • 控制充電/放電過程并接收實時電池信息，如充電狀態 （SOC） 和健康狀態 （SOH）


微處理器接口擴展

  • 通過向低成本微控制器添加GPIO來節省成本

  • 為系統控制處理器添加額外的 SPI 和 I2C 接口

  • 輕松執行電壓電平轉換

  • 通過PLD實現系統狀態寄存器簡化系統管理


CSI-2 圖像傳感器接口

  • 支持 CSI-2 高速差分信號

    • Rx 和 Tx 接口

  • 從 1-4 個 CSI-2 通道，速率高達 900 Mbps

  • 可在 49 wlcsp （3.2 x 3.2 mm） 中實現

  • 支持 RAW、YUV 或 RGB


DSI LCD顯示器接口

  • 支持 DSI 發送信令

    • HS（高速）模式傳輸

    • LP（低功耗）模式發送和接收

  • 可在 49 wlcsp （3.2 x 3.2 mm） 中實現

  • 支持 DSI 格式 RGB、YCbCr 和用戶定義

  • 輸入總線也可以是 DSI，以啟用 LCD 屏幕更換


在線留言

在線留言
