泰科TE工業RJ45插孔

發布時間：2024-01-22 11:35:50     瀏覽：607

集成磁性的工業RJ45插孔為工業以太網提供了從電纜到物理層的高度集成的連接解決方案。將磁性材料集成到插孔中可以大大改善EMI噪聲屏蔽，從而實現更可靠的連接。具有1x1直接和R / A、1x2、2x1外形因素的標準化產品組合可滿足許多工業應用，使客戶能夠找到他們正在尋找的解決方案。特定的工業要求，如通過提高耐腐蝕性，延長溫度范圍和延長產品壽命的高可靠性都得到解決，包括支持最新的回流焊生產工藝。

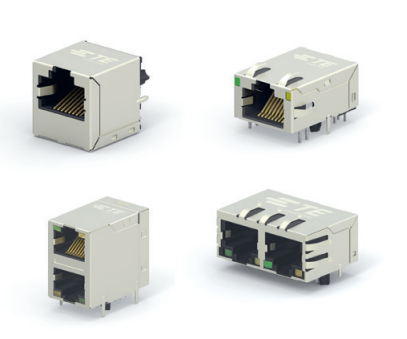

泰科TE工業RJ45插孔

關鍵特性

?延長溫度。范圍-40…+85°C

?最低產品壽命要求為10年

?260°C回流管腳在膏焊

?鍍層厚度0.76 μ m [30 μ英寸]黃金超過1,27 μ m [50 μ英寸]鎳

?提高EMI完整性和信號完整性性能

?支持電流和電壓模式物理芯片


應用:

?所有需要以太網的工業應用

?所有工業設備與RJ45連接

?工業計算機

?中心

?路由器

?無線接入點

?公司的

?開關

?所有支持以太網的設備


選型：

DescriptionSpeed   Ports OrientationTab      LEDs     PackagingSolder Pin and Shield Length [mm]  TE PN
RJ45 JACK INT.MAG.10/1001x1 INV.10/1001R/AUpNoT&R19   2301994-1
RJ45 JACK INT.MAG.10/100 LED 1x1 INV10/1001R/AUpYesT&R19   2301994-2
RJ45 JACK INT.MAG.10/1001x1 INV10/1001R/AUpNoT&R30   2301994-3
RJ45 JACK INT.MAG.10/1001x110/1001R/ADownNoT&R19   2301994-4
RJ45 JACK INT.MAG.1Gb 1x1 INV.1G1R/AUpNoT&R19   2301994-5
RJ45 JACK INT.MAG.1Gb 1x11G1R/ADownNoT&R19   2301994-6
RJ45 JACK INT.MAG.1Gb 1x11G1R/ADownNoT&R19 301994-
RJ45 JACK INT.MAG.10/100 LED 1x1 INV10/1001R/AUpYesT&R19   2301994-8
RJ45 JACK INT.MAG.10/100 LED 1x110/1001R/ADownYesT&R19 2301994-
RJ45 JACK INT.MAG.1Gb LED 1x11G1R/ADownYesT&R19 1-2301994-0
RJ45 JACK INT.MAG.1Gb LED 1x1 INV.low1G1R/AUpYesT&R17 1-2301994-1
RJ45 JACK INT.MAG.1Gb LED 1x11G1R/ADownYesT&R19 -2301994-2
RJ45 JACK INT.MAG.10/1001x110/1001R/ADownNoT&R30   -2301994-
RJ45 JACK INT.MAG.1Gb 1x1 INV.1G1R/AUpNoT&R30 2-2301994-0
RJ45 JACK INT.MAG.1Gb 1x11G1R/ADownNoT&R30 2-2301994-1
RJ45 JACK INT.MAG.1Gb 1x11G1R/ADownNoT&R30 2-2301994-2
RJ45 JACK INT.MAG.1Gb LED 1x11G1R/ADownYesT&R30 2-2301994-3
RJ45 JACK INT.MAG.1Gb LED 1x11G1R/ADownYesT&R30 2-2301994-4
RJ45 JACK INT.MAG.1Gb 1x1 VERT.1G1Vertical一NoT&R19 2301995-
RJ45 JACK INT.MAG.10/1001x1 VERT.10/1001Vertical一NoT&R19 2301995-2
RJ45 JACK INT.MAG.10/100 LED 1x1 VERT.10/1001Vertical一YesT&R19 2301995-3
RJ45 JACK INT.MAG.1Gb LED 1x1 VERT.1G1Vertical一YesT&R19 2301995-4
RJ45 JACK INT.MAG.10/1001x2 INV10/100 1x2R/AUpNoT&R19 2301996-1
RJ45 JACK INT.MAG.10/1001x210/100 1x2R/ADownNoT&R19 2301996-2
RJ45 JACK INT.MAG.1Gb 1x2 INV1G 1x2R/AUpNoT&R19 2301996-3
RJ45 JACK INT.MAG.1Gb 1x21G 1x2R/ADownNoT8R19 2301996-4
RJ45 JACK INT.MAG.10/100 LED 1x2 INV.10/100 1x2R/AUpYesT&R19 2301996-5
RJ45 JACK INT.MAG.10/100 LED 1x210/100 1x2R/ADownYesT&R19 2301996-6
RJ45 JACK INT.MAG.1Gb LED 1x2 INV1G 1x2R/AUpYesT&R17 2301996-7
RJ45 JACK INT.MAG.1Gb LED 1x21G 1x2R/ADownYesT&R19 2301996-8
RJ45 JACK INT.MAG.10/1001x1 INV10/1001R/AUpNoTray19 5-2301994-1
RJ45 JACK INT.MAG.10/100 LED 1x1 INV10/1001R/AUpYesTray19 5-2301994-2
RJ45 JACK INT.MAG.10/1001x1 INV.10/1001R/AUpNoTray30 0-2301994-3
RJ45 JACK INT.MAG.10/1001x110/1001R/ADownNoTray19 5-2301994-4
RJ45 JACK INT.MAG.1Gb 1x1 INV.1G1R/AUpNoTray19 5-2301994-5
RJ45 JACK INT.MAG.1Gb 1x11G1R/ADownNoTray19 5-2301994-6
RJ45 JACK INT.MAG.1Gb 1x11G1R/ADownNoTray19 5-2301994-7
RJ45 JACK INT.MAG.10/100 LED 1x1 INV10/1001R/AUpYesTray19 5-2301994-8
RJ45 JACK INT.MAG.10/100 LED 1x110/1001R/ADownYesTray19 5-2301994-9
RJ45 JACK INT.MAG.1Gb LED 1x11G1R/ADownYesTray19 6-2301994-0
RJ45 JACK INT.MAG.1Gb LED 1x1 INV.-low1G1R/AUpYesTray17 6-2301994
RJ45 JACK INT.MAG.1Gb LED 1x11G1R/ADownYesTray19 6-2  1994-
RJ45 JACK INT.MAG.10/1001x110/1001R/ADownNoTray30 6-2301994-9
RJ45 JACK INT.MAG.1Gb 1x1 INV.1G1R/AUpNoTray30 7-2301994-0
RJ45 JACK INT.MAG.1Gb 1x11G1R/ADownNoTray30 7-2301994-1
RJ45 JACK INT.MAG.1Gb 1x11G1R/ADownNoTray30 7-2301994-2
RJ45 JACK INT.MAG.1Gb LED 1x11G1R/ADownYesTray30 7-2301994-3
RJ45 JACK INT.MAG.1Gb LED 1x11G1R/ADownYesTray30 7-2301994-4
RJ45 JACK INT.MAG.1Gb 1x1 VERT.1G  1Vertical一NoTray19 5-2301995-
RJ45 JACK INT.MAG.10/1001x1VERT10/100  1Vertical一NoTray19 5-2301995-2
RJ45 JACK INT.MAG.10/100 LED 1x1VERT10/100  1Vertical一YesTray19 5-2301995-3
RJ45 JACK INT.MAG.1Gb LED 1x1 VERT1G  1Vertical一YesTray19 5-2301995-4
RJ45 JACK INT.MAG.10/1001x2 INV10/1001x2R/AUpNoTray19 5-2301996-
RJ45 JACK INT.MAG.10/1001x210/1001x2R/ADownNoTray19 5-2301996-2
RJ45 JACK INT.MAG.1Gb 1x2 INV1G1x2R/AUpNoTray19 5-2301996-3
RJ45 JACK INT.MAG.1Gb 1x21G1x2R/ADownNoTray19 5-2301996-4
RJ45 JACK INT.MAG.10/100 LED 1x2 INV10/1001x2R/AUpYesTray19 5-2301996-5
RJ45 JACK INT.MAG.10/100 LED 1x210/1001x2R/ADownYesTray19 5-2301996-6
RJ45 JACK INT.MAG.1Gb LED 1x2 INV1G1x2R/AUpYesTray17 5-2301996-7
RJ45 JACK INT.MAG.1Gb LED 1x21G1x2R/ADownYesTray19 5-2301996-8
RJ45 JACK INT.MAG.10/1002x110/1002x1R/ADownNoTray19 2301997-2
RJ45 JACK INT.MAG.1Gb 2x11G2x1R/ADownNoTray19 2301997-4
RJ45 JACK INT.MAG.10/100 LED 2x110/1002x1R/ADownYesTray19 2301997-5
RJ45 JACK INT.MAG.1Gb LED 2x11G2x1R/ADownYesTray19 2301997-7
RJ45 JACK INT.MAG.10/100 LED 2x110/1002x1R/ADownYesTray30 2301997-9
