TurboFlex?柔性配電電纜96系列Glenair
發布時間:2023-01-30 16:46:17 瀏覽:524

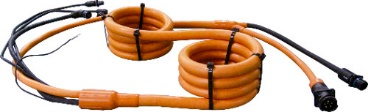

饋電電纜線給電纜線互連系統工程師造成了與眾不同的挑戰。它一般由剛性和非柔性導線制作而成,曲率半徑特別大。這種電纜線重,布線比較困難,由于風化作用和受到磨損,護線套容易損壞。Glenair的TurboFlex?柔性配電設備電纜線由鍍錫、鍍鎳、鍍銀銅制作而成的高股數繩絞內導線組合而成。這些高柔性導線與Glenair的高性能護線套相互結合TurboFlex?柔性配電設備電纜線特別適合需要靈活性、耐久性和重量減輕的應用。
驚人的耐久性——尤其是在寒冷的冬季-TurboFlex?電纜線使用Glenair的創新Duraelectric?絕緣化合物對極端環境、臭氧暴露、腐蝕性化學品、伽馬輻射等形式的環境和機械性損傷具有優異的低煙無鹵耐受性。在配電設備應用中,使用壽命長和性能至關重要。TurboFlex?柔性配電設備電纜線兩者兼具柔性導線和耐用護線套。
Glenair連接器是全球知名的高端品牌,廣泛應用于航天航空、軍用、艦載、精密制造等場合。深圳市立維創展科技有限公司,授權代理銷售Glenair產品,并提供技術支持。歡迎咨詢。
詳情了解Glenair請點擊:/brand/77.html
TurboFlex? Product Selection Guide | ||||
TurboFlex? Cable Type | Jacket Type and Cable Construction | Part No. | Page No. | |
TurboFlex? Copper Conductor (standard) | Duralectric? D accelerated UV/sunlight, fire, and ozone resistance and broad fluid and caustic chemical resistance | (.125" jacket) | 961-001 | 8 |
(.093" jacket) | 961-002 | 9 | ||
(.062" jacket) | 961-003 | 10 | ||
(.032" jacket) | 961-004 | 11 | ||
(2 layer jacket) | 961-035 | 13 | ||
Duralectric? D with fabric overbraiding for superior abrasion / temperature protection | 961-044 | 14 | ||
Duralectric? D with conductive braided ground shield for high-power applications | 961-007 | 16 | ||
Duralectric? D with ground shield and conductive silicone for high voltage / high power | 961-056 | 18 | ||
Duralectric? L (lightweight) formula for weight savings and abrasion protection | 961-041 | 20 | ||
Duralectric? K for ultra-low temperature flexibility and gamma radiation resistance | 961-033 | 22 | ||
Duralectric? F for resistance to jet fuels and oils plus low-temperature flexibility | 961-051 | 23 | ||
UL recognized TurboFlex? Standard Copper Conductor | Duralectric? D accelerated UV/sunlight, fire, and ozone resistance and broad fluid and caustic chemical resistance | 961-065 | 24 | |
TurboFlex? TURBOFLEX? APPL | Duralectric? D (see description above) | 961-010 | 12 | |
Duralectric? L (lightweight) formula for weight savings and abrasion protection | 961-042 | 21 |
