Q-Tech具有4點安裝5x7晶體振蕩器
發布時間:2021-05-10 17:13:32 瀏覽:1009

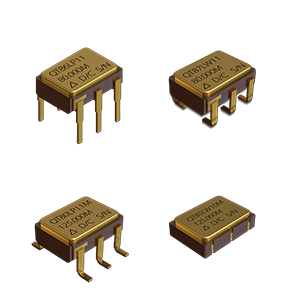

Q-Tech的5X7mm含有4點安裝晶體振蕩器,在極其小的封裝中提供最先進性的沖擊和振動靈敏度。Q-Tech振蕩器采用4點晶體安裝,這也是空間應用所必需的(至少3點)。
深圳市立維創展科技有限公司授權代理銷售Q-TECH產品,備件現貨,歡迎與業界同行合作。
詳情了解Q-Tech請點擊: http : //www.nauticharger.cn/public/brand/60.html
或聯系我們的銷售工程師: 0755- 83642657 QQ: 2295048674
Package | Dimensions (mm) | Market | Device Type | Logic Type | Supply Voltage | Package Type | Stability | Phase Noise Floor |
QT180, QT181, QT182, QT183, QT184, QT185, QT186, QT187, QS180, QS181, QS182, QS183, QS184, QS185, QS186, QS187 | 5.00 x 7.00 | Space | 5x7 w/ 4pt Mount | ACMOS, HCMOS, LVCMOS, TTL, LVDS, LVPECL | 2.5 to 5.0Vdc | 5 x 7mm 4-Point Mount | ±25ppm to ±100ppm | Contact Q-Tech |
QT80F, QT81F, QT82F, QT83F, QT84F, QT85F, QT86F, QT87F, QS80F, QS81F, QS82F, QS83F, QS84F, QS85F, QS86F, QS87F, QG80F, QG81F, QG82F, QG83F, QG84F, QG85F, QG86F, QG87F | 5.00 x 7.00 x 2.00 | Military & Avionics | 5x7 w/ 4pt Mount | CMOS, HCMOS, TTL | 1.8 to 5Vdc | Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 4 Pin | ±50ppm to ±100ppm | -162 dBc/Hz @ 40MHz |
QT81, QS81 | 5.00 x 7.00 x 2.00 | High Temp | 5x7 w/ 4pt Mount | CMOS, LVHCMOS, TTL | 1.8 to 5Vdc | Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 4 Pin | ±175ppm to ±450ppm | Contact Q-Tech |
QT86 | 5.00 x 7.00 x 2.00 | High Temp | 5x7 w/ 4pt Mount | CMOS, LVHCMOS, TTL | 1.8 to 5Vdc | Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 6 Pin | ±175ppm to ±450ppm | Contact Q-Tech |
QT80F, QT85F, QT86F, QT87F, QS80F, QS85F, QS86F, QS87F, | 5.00 x 7.00 x 2.00 | Military & Avionics | 5x7 w/ 4pt Mount | LVDS, LVPECL | 2.5 to 3.3Vdc | Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 6 Pin | ±50ppm to ±100ppm | -143 dBc/Hz @ 125MHz |
