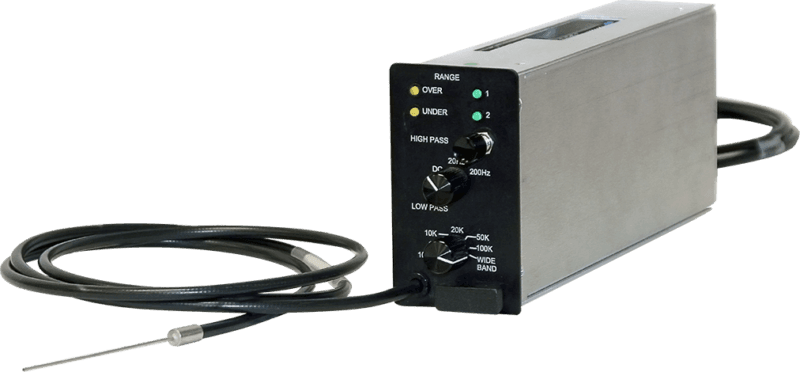

MTI Instruments光纖傳感器Fotonic插件模塊
發布時間:2020-12-28 16:06:25 瀏覽:1143
MTI Instruments光纖傳感器的Fotonic插件模塊用于測量頻率高達500 kHz的動態邊緣位置、位移和振動,Fotonic插件模塊用于靈敏的光纖納米運動和振動測量傳感器。
動態邊緣位置、位移和振動測量頻率可達500 kHz。MTI Instruments獨特的光纖探針設計能夠適應各種目標反射率或形狀,非常適合于各種應用,如超聲波喇叭振動或壓電材料的研究。
隨機光纖分布--隨著從探針到目標的距離增大,接收到的光纖按比例捕獲更多的光。結果是一個非常敏感的線性輸出響應。探針間隙的不斷增大將按比例減少接收到的光量,從而產生敏感的線性輸出響應,并且具有很大的測量范圍和隔離距離。
應用領域
盒式運動
核換熱器振動
壓電陶瓷,1-3 PZT/聚合物復合材料和PVDF薄膜
壓電疊加運動
MTI Instruments是美國精密測試儀器的制造商。其產品需要精確的測量和控制,以及自動化制造、裝配和復雜機械操作的開發和實施。MTI Instruments主要用于商用和軍用飛機發動機振動定位測試、半導體晶片測試等領域。
深圳市立維創展科技有限公司,優勢直接渠道提供MTI Instrument s訂貨服務,歡迎咨詢。
詳情了解MTI Instrument s請點擊:/brand/70.html
或聯系我們的銷售工程師:0755-83050846 QQ: 3312069749
P/N | Model | Measurement Range | Stand-Off | Resolution | Frequency Response |
8500-1011 | Plug-in Module: MTI-2020R | 0.102mm (4mils) – 0.305mm (12mils) | 0.127mm (5mils) – 0.508mm (20mils) | 0.01μm (1μin) – 0.1μm (1μin) | 120kHz |
8500-1012 | Plug-in Module: MTI-2032R | 0.127mm (5mils) – 1.016mm (40mils) | 0.127mm (5mils) – 0.889mm (35mils) | 0.01μm (1μin) – 0.1μm (1μin) | 120kHz |
8500-1013 | Plug-in Module: MTI-2047R | 0.127mm (5mils) – 1.016mm (40mils) | 0.127mm (5mils) – 1.118mm (44mils) | 0.01μm (1μin) – 0.1μm (1μin) | 130kHz |
8500-1014 | Plug-in Module: MTI-2062R | 0.152mm (6mils) – 1.524mm (60mils) | 0.127mm (5mils) – 1.778mm (70mils) | 0.01μm (1μin) – 0.1μm (1μin) | 150kHz |
8500-1015 | Plug-in Module: MTI-2062H | 0.762mm (30mils) – 1.905mm (75mils) | 0.762mm (30mils) – 3.81mm (150mils) | 0.01μm (1μin) – 0.1μm (1μin) | 150kHz |
8500-1016 | Plug-in Module: MTI-2125R | 0.152mm (6mils) – 3.556mm (140mils) | 0.178mm (7mils) – 3.048mm (120mils) | 0.01μm (1μin) – 0.1μm (1μin) | 190kHz |
8500-1017 | Plug-in Module: MTI-2125H | 1.778mm (70mils) – 4.445mm (175mils) | 1.27mm (50mils) – 7.62mm (300mils) | 0.01μm (1μin) – 0.1μm (1μin) | 150kHz |
8500-1018 | Plug-in Module: MTI-2125CTI | 0.508mm (20mils) – 3.556mm (140mils) | 0.762mm (30mils) – 5.588mm (220mils) | 0.01μm (1μin) – 0.1μm (1μin) | 150kHz |
8500-1019 | Plug-in Module: MTI-2032RX High Resolution | 0.036mm (1.4mils) – 4.445mm (175mils) | 0.038mm (1.5mils) | 0.01μm (1μin) – 0.1μm (1μin) | 100kHz |
8000-4237 | Plug-in Module: MTI-RC200 | 2.54mm (100mils) | 2.54mm (100mils) | 0.01μm (1μin) – 0.1μm (1μin) | 100kHz |
8500-1020 | Plug-in Module: MTI-2047E | 0.127mm (5mils) – 0.051mm (2mils) | 100kHz | ||
8500-1021 | Plug-in Module: MTI-2062E | 0.191mm (7.5mils) – 0.061mm (2.4mils) | 100kHz |
